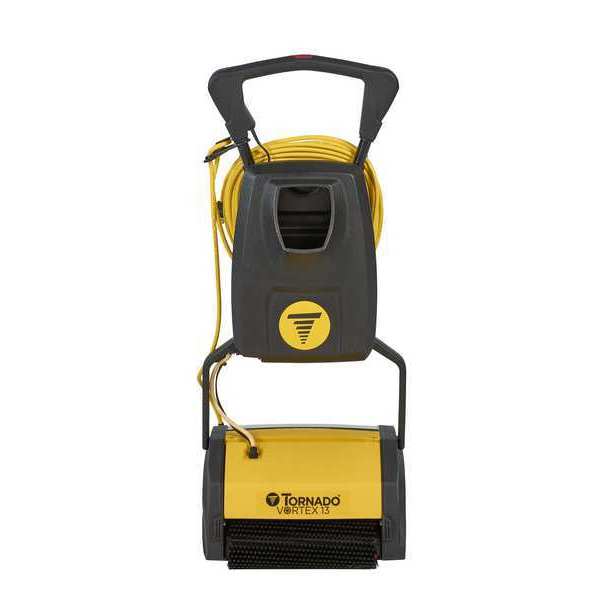

Vortex

Multi-Surface Scrubbers

We have revamped our popular BR Multiwash Scrubbers with the new line of Tornado Vortex Multi-Surface Scrubbers – now easier than ever to assemble, use and maintain. These versatile machines effectively clean virtually any hard or soft surface, including hard, uneven floors like tile, VCT and concrete, soft floors like rubber sports mats, entrance mats and commercial carpet, and even escalators! The cylindrical brush technology of the Vortex gives it deep cleaning power, with brush speeds up to four times greater than comparable disk scrubbers and reaching down into cracks and crevices to clean dirt and debris that pads just pass over. Utilizing counter-rotating cylindrical brushes to scrub and lift dirt and water onto a rotating recovery drum, these low-moisture scrubbers will have your floors clean and dry in no time.

Available in 9”, 13” and 18” sizes.

Utilizes 30% less water than disk scrubbers, resulting in cost savings on chemicals and water, and minimizing moisture that leads to mold, bacteria and allergens.

Compact, low-profile design allows for cleaning hard to reach areas in corners, kitchens, bathrooms and other tight spaces a standard scrubber just can’t fit.

Quiet operation (69 DBA), so you can clean anytime.

Optional accessories include additional brush options to best suit your floor type, a side brush for edge cleaning, and a cart for ease of transport.

Easily removable solution and recovery tanks for fast filling, emptying and cleaning.

Wider, more comfortable handle with one simple push button to dispense cleaning solution.

Name	Vortex 9	Vortex 13	Vortex 18
Model	TS050-W09-U	TS050-W13-U	TS050-W18-U
Dimensions (L x W x H)	15"x14"x43"	15"x17"x43"	15"x22"x43"
Weight (Lbs.)	47	58	68
Solution/Recovery Tank (Gal.)	1/0.5	1/0.75	1/1
Tank construction	Polyethylene	Polyethylene	Polyethylene
Brush Type	2, counter-rotating cylindrical	2, counter-rotating cylindrical	2, counter-rotating cylindrical
Brush Width (In.)	9	13	18
Brush RPM	650	650	650
Cleaning Rate (Sq. Ft./Hr.)	2691	3775	4844
Sound Level dB(A)	69	69	71
Cord Length (In.)	40	40	40
Brush Motor (W)	750	950	1150
Pump Motor (W)	26	26	26
Brush Pressure (g/cm2)	220	190	170
